Additional PCB Assembly Process Tooling
Inspection and Test Tooling, Rework Tables, Solder Pot Fixtures, Wash Baskets and more. Pentagon EMS designs and manufactures tooling for every conceivable PCB assembly process. Tell us what your process challenges are and we can design and manufacture a solution that is just right for your application.
Trim Plates
Bring speed, accuracy and ease to your lead trimming operations with less cost and faster turn times.

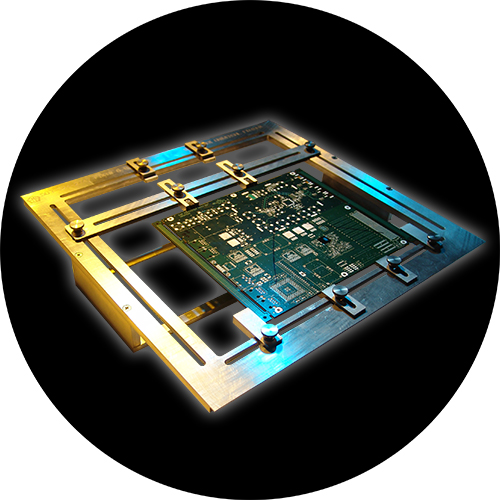

AOI / 5DX
Make higher inspection speeds and resolutions possible, while reducing or preventing false failures.
Flying Probe
Increase accuracy, repeatability and throughput to testing processes
Functional Test
Provides the ability to accurately locate, secure and test PCB.

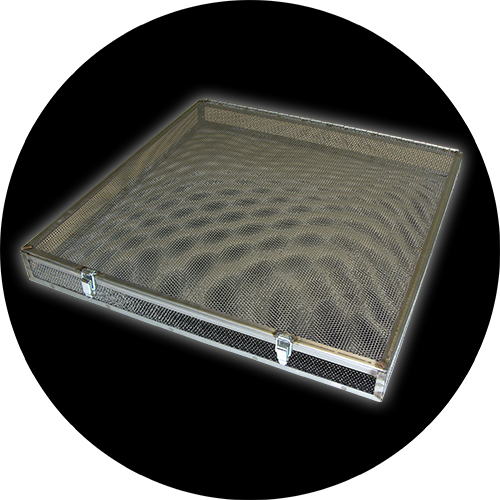

Wash Baskets
High quality stainless steel wire wash baskets fabricated to the exact size you need.
Custom Applications
Component Presses, Robotic Soldering Fixtures, Label Alignment Fixtures, Hand Soldering Fixtures, Final Assembly Fixtures, and more.
Tell us what you need.
